Bolt Tensioning SolutionsXEP 1500

XEP 1500
ULTRA HIGH PRESSURE ELECTRIC PUMP FOR TENSIONING APPLICATIONS

•Two Stage piston pump, compact, robust and reliable.
•1.1 kW electric motor, powerful, big flow.
•Safety and easy operating control line.
•When pressure is under the set pressure (1 Bar / 14.5 psi), pressure switch starts automatically and raises it to the set value.
•Single and double acting available — suitable for various operations.
•High performance radiator ensures continuous operation.

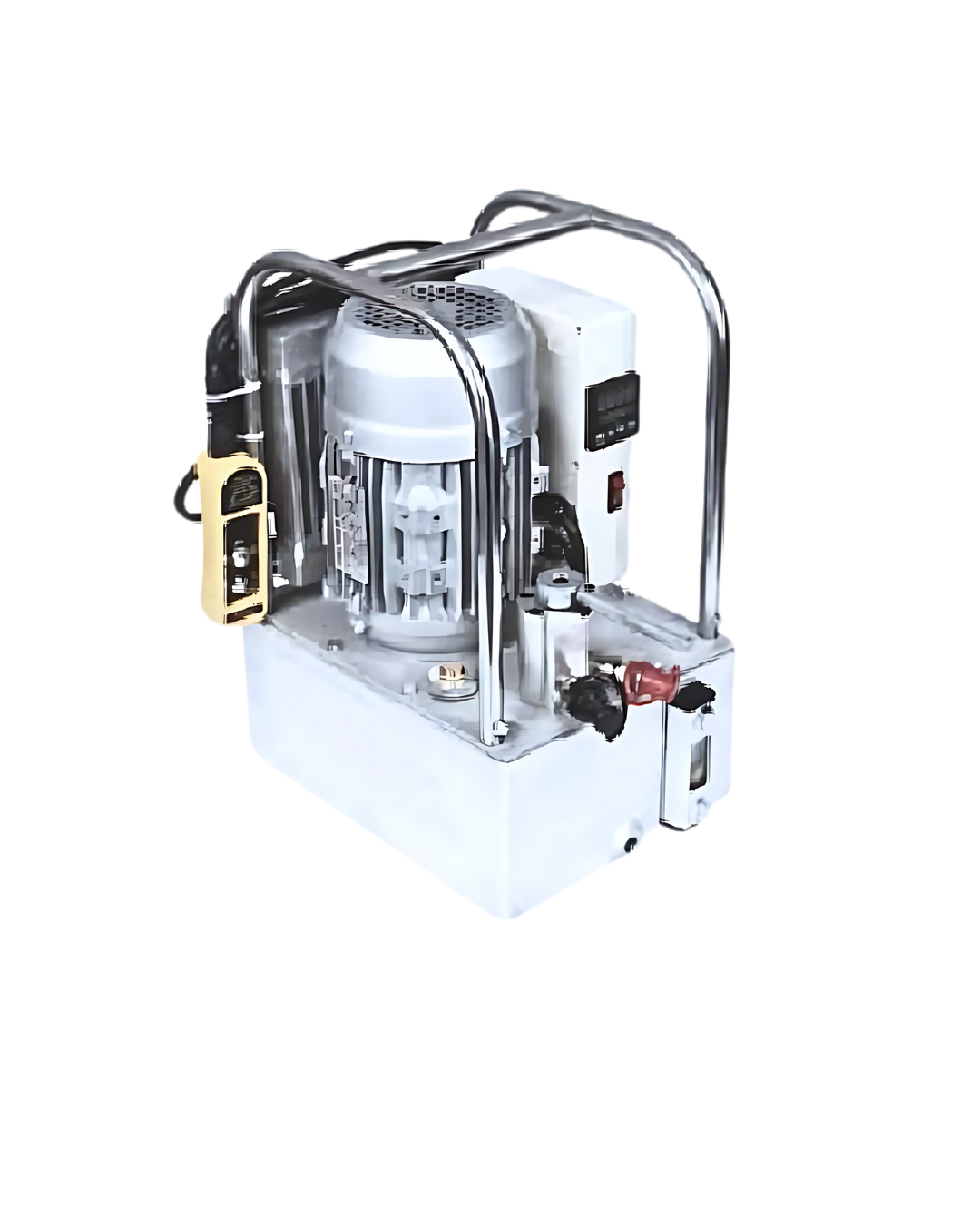

XEP 1500 Ultra High Pressure Electric Pump

Download Catalog

XEP 1500 Series Specifications

Model	Reservoir (L)	Motor (KW)	Supply *	Max. Working Pressure	Size (mm)	Control Line (m)	Output Flow (L/min)	Weight (kg)	Mode of Action
XEP 1500	7.6	1.1	220V/50Hz/single phase	2000 bar / 29000 psi	375x300x410	6	2 @ 50 bar 0.3 @ 2000 bar	20	Single Acting
XEP 1500D	7.6	1.1	220V/50Hz/single phase	2000 bar / 29000 psi	375x300x410	6	2 @ 50 bar 0.3 @ 2000 bar	20	Double Acting

*Supply: Voltage and frequency can be demanded by customer
