Bolt Tensioning SolutionsXEP 700

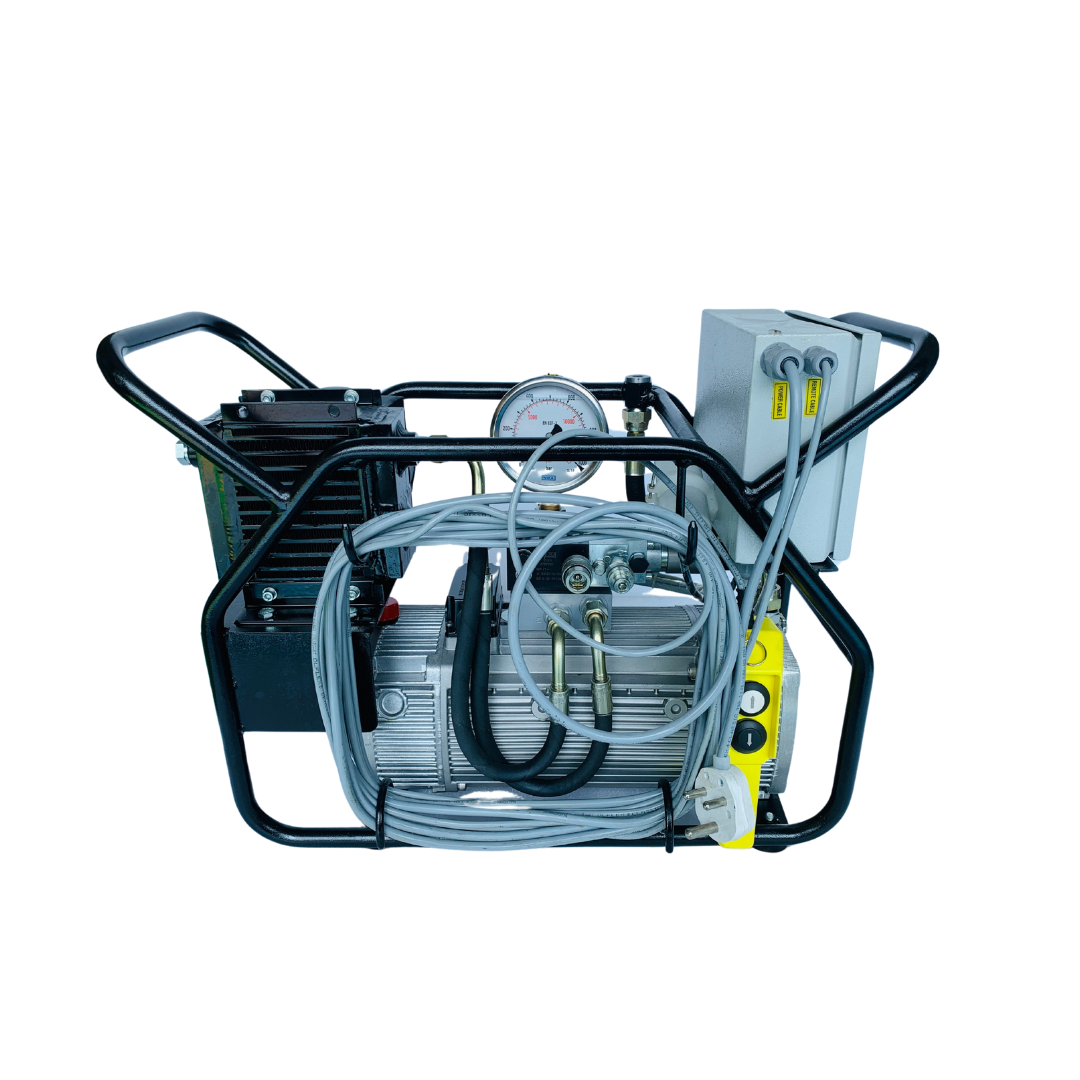

XEP 700
Hydraulic Pump with Three Phase Electric Motor
ATEX Certified Version CE Ex li 2 G K T3
ATEX Zone-2 Class T3 Gas Group IIA
- • Three Phase Electric Motor 1.1 kW 440V
- • Axial-piston pump mod
- • 3/2 solenoid valve 24DC and inversion valve
Weight: Kg (Lbs) 36 (79)
- • Oil flow 9.4 Litres/min @ 0-70 Bar (2.48 g/min@1015 PSI) and 0.9 Litres/min @ 700 Bar (0.23 g/min@ 10000 PSI)
- • Pressure regulator on P Line to set the torque value
- • Adjustable Relief Valve on return line
- • Pressure Gauge DN 100 range 0-1000 Bar (14500 PSI)
- • Reservoir Capacity 10 Litres (2.64 Gallon)
- • Recommended Hydraulic Oil ISO 32 and above Also available in Air Operated Type (PAE-ATEX)
- • The pump includes remote control and electric box
EQUIPPED WITH SAFETY FEATURES
NOTE: Also available as Conventional Electric Power pack. Pump will be supplied with Remote Control Pendant
Fully Automatic Power Pack
- Faster and reliable in operations.
- High repeatability of the bolting process without pressing the button again and again.
Temperature Management
In-built heat exchanger to cool the system.
- The unique concept of the high-speed cooling and heat exchanger optimizes cooling for Continuous operation.
- Power pack switches off automatically if temperature rises above 80°C.
Oil immersed Motor
- Noiseless and vibration free operations Effective temperature equalisation by cooling.
- motor, pump & oil at the same time.
PLC Controlled System
Effectively controlled operations of power packs. If the power pack remains idle continuously more than 3 minutes, it gets switched off automatically.
TECHNICAL SPECIFICATION
Model No.
XEP-700
Power Rating Flow Rate
1.5 KW
Maximum Pressure
700Bar/10,000 PSI
Flow Rate
9.7LPM @ 70Bar
0.97LPM @ 700 Bar
0.97LPM @ 700 Bar
Capacity
6 Ltr./2 Gallon
