Bolt Tensioning SolutionsXAP700
XAP700

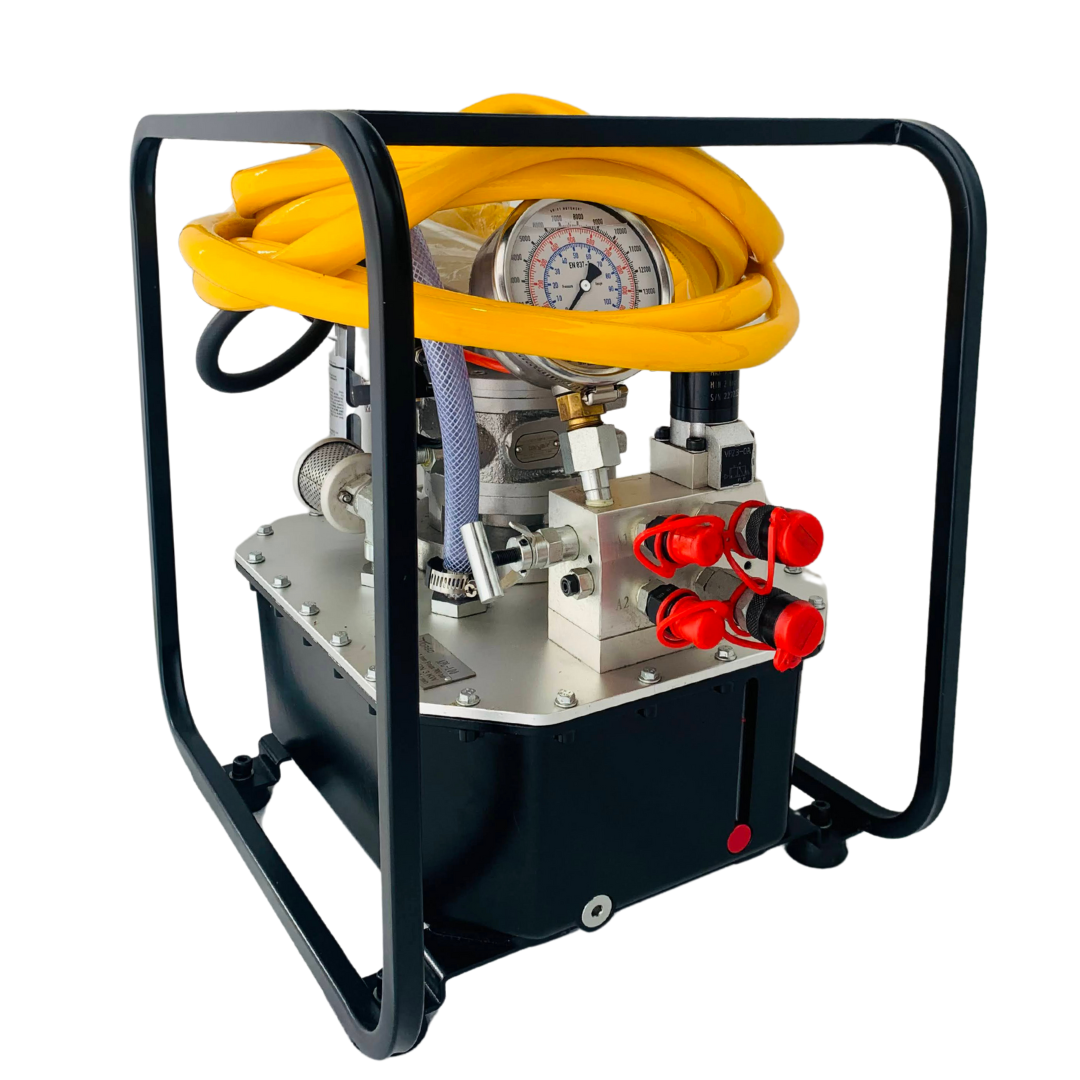

AIR OPERATED POWERPACK FOR HYDRAULIC TORQUE WRENCHES
700 Bar, TwoSpeed | 0.9/0.45 - 7.9/0.9cm OilFlow
Powered by a rotary air vane, 4HP motor(3,000RPM). Equipped with a filter-lubricator assembly, air muffler, adjustable relief and 10" remote controlled pendant on all models. High performance two-stage pump provides higher cross-over pressure for faster cycle times and tool operation; 55 cubic inches/ minute@10,000 PSI.
TECHNICAL SPECIFICATIONS
Model
XAP-700
Pressure 1st-2nd Stage Bar (PSI)
70/700
Flow Rate 1st-2nd Stage V/mm (g/min)
7.9/0.9
Motor
Pneumatic
RPM
3000
Reservoir Capacity Liter (Gallon)
8.5 (2.24)
Weight Kg (Lbs)
36 (79)
