Subsea Bolt Tensioner

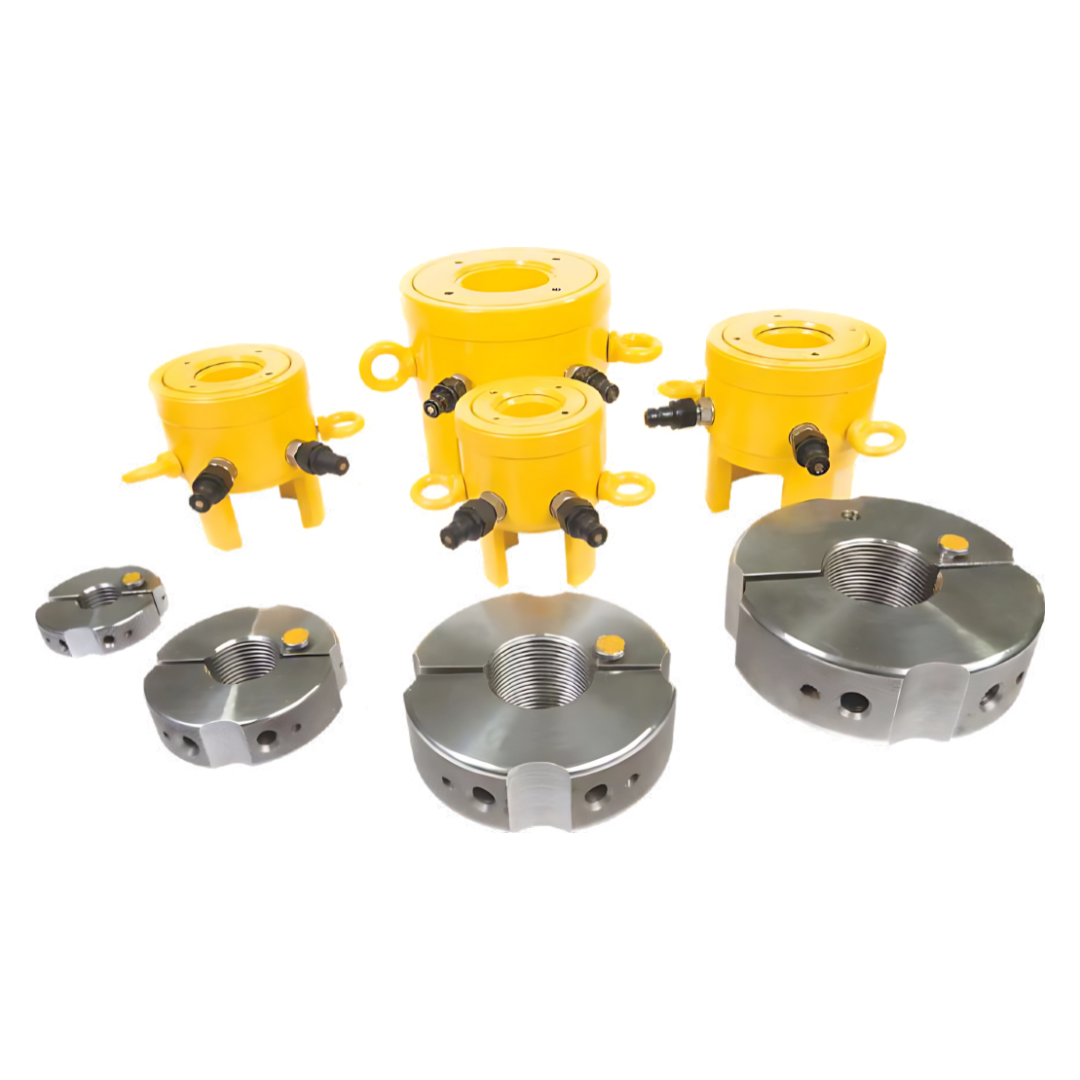

XTORC subsea Bolt tensioners are manufactured to suit the demanding requirements of divers working in harsh subsea environments. We provide a complete range of Subsea Tensioners which incorporate the Split Reaction Nut benefitting divers by saving time and by ensuring the fastest possible reaction nut engagement.
SUBSEA BOLT TENSIONER SPECIFICATIONS
| Model | Bolt Dia. | Max Load | Hydraulic Area | Stroke | Tool Weight kg (lbs) | Tool Dimensions inch | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Imperial | Metric | in | mm | TONF | KN | in² | cm² | a | b | c | d | e | f | ||
| 1ST:1000 | 1ST:0024 | 1" | 24 | 24.58 | 245 | 2.53 | 16.34 | 30 | 3.2 (7.05) | 3.22 | 0.98 | 8.5 | 4.72 | 5.66 | 2.4 |
| 1ST:1125 | 1ST:0027 | 1.1/8" | 27 | 24.58 | 245 | 30 | 3.2 (7.05) | 3.22 | 0.98 | 8.5 | 4.72 | 5.66 | 2.51 | ||
| 2ST:1250 | 2ST:0033 | 1.1/4" | 33 | 38.38 | 379.2 | 3.92 | 25.32 | 30 | 4.8 (10.58) | 3.93 | 1.1 | 9.44 | 5.15 | 6.25 | 2.95 |
| 2ST:1375 | 2ST:0036 | 1.3/8" | 36 | 55.4 | 379.2 | 30 | 4.8 (10.58) | 3.93 | 1.1 | 9.44 | 5.15 | 6.25 | 3.07 | ||
| 3ST:1500 | 3ST:0039 | 1.1/2" | 39 | 55.4 | 552 | 5.71 | 36.88 | 30 | 6.2 (13.66) | 4.4 | 1.37 | 9.8 | 5.23 | 6.53 | 3.3 |
| 3ST:1625 | 3ST:0042 | 1.5/8" | 42 | 75.6 | 552 | 30 | 6.2 (13.66) | 4.4 | 1.37 | 9.8 | 5.23 | 6.537 | 3.42 | ||
| 4ST:1750 | 4ST:0045 | 1.3/4" | 45 | 75.6 | 753 | 7.79 | 50.27 | 30 | 8.5 (18.73) | 5.03 | 1.61 | 10.66 | 5.51 | 7 | 3.75 |
| 4ST:1875 | 4ST:0048 | 1.7/8" | 48 | 108 | 753 | 30 | 8.5 (18.73) | 5.03 | 1.61 | 10.66 | 5.51 | 7.79 | 3.85 | ||
| 5ST:2000 | 5ST:0052 | 2" | 52 | 108 | 1076 | 11.12 | 71.74 | 30 | 12.2 (26.89) | 5.82 | 1.88 | 11.65 | 5.98 | 7.79 | 4.76 |
| 5ST:2250 | 5ST:0056 | 2.1/4" | 56 | 165 | 1076 | 30 | 12.2 (26.89) | 5.82 | 1.88 | 11.65 | 5.98 | 8.81 | 4.56 | ||
| 6ST:2500 | 6ST:0064 | 2.1/2" | 64 | 165 | 1644 | 17 | 109.68 | 30 | 19.2 (42.32) | 6.92 | 2.28 | 13.18 | 6.61 | 8.81 | 5.31 |
| 6ST:2750 | 6ST:0072 | 2.3/4" | 72 | 253.4 | 1644 | 30 | 19.2 (42.32) | 6.92 | 2.28 | 13.18 | 6.61 | 10.23 | 5.55 | ||
| 7ST:3000 | 7ST:0076 | 3" | 76 | 253.4 | 2525 | 26.1 | 68.7 | 30 | 29.0 (63.93) | 8.5 | 2.08 | 14.68 | 7.55 | 10.23 | 6.37 |
| 7ST:3500 | 7ST:0090 | 3.1/2" | 90 | 2525 | 30 | 29.0 (63.93) | 8.5 | 2.08 | 14.68 | 7.55 | 6.81 | ||||
Note: Dimensions are subject to change.
