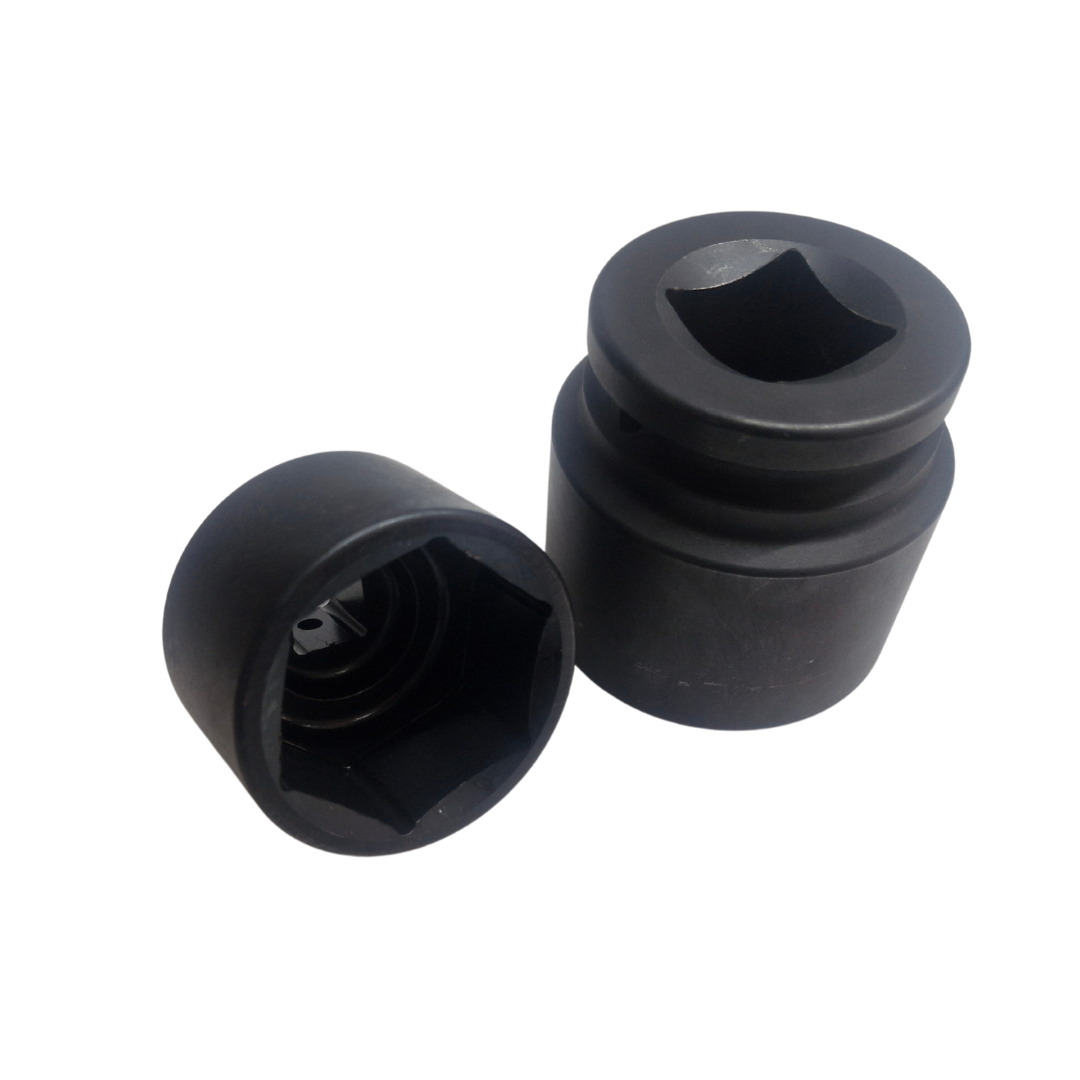

Impact Sockets

The range of Imperial Impact Sockets with square drives is from 3/4" to 2.1/2" and the across flat sizes go up to 6.1/8". The Metric Impact Sockets offer comprehensive models with square drives ranging from 3/4" to 2.1/2" and across flat sizes up to 145mm.

Download Catalog

Technical Specifications

Model	Square Drive	Nut A/F Inch	Nut A/F mm	D1	D2	S	T	L
XTIS7524	3/4"	-	24	40	44	46	21	90
XTIS7527	3/4"	-	27	41	44	48	23	90
XTIS7527F	3/4"	1.1/16	-	41	44	48	23	90
XTIS7530	3/4"	-	30	44	44	52	24	90
XTIS7531F	3/4"	1.1/4	-	49	44	52	24	90
XTIS7532	3/4"	-	32	49	44	52	26	90
XTIS7536	3/4"	-	36	52	44	55	28	90
XTIS7536F	3/4"	1.7/16	-	52	44	56	28	90
XTIS7541	3/4"	-	41	57	44	59	36	90
XTIS7541F	3/4"	1.5/8	-	57	44	59	36	90
XTIS7546	3/4"	-	46	67	44	64	37	90
XTIS7546F	3/4"	1.13/16	-	67	44	64	36	90
XTIS7550	3/4"	-	50	70	54	67	39	90
XTIS7551F	3/4"	2	-	73	54	67	39	90
XTIS7555	3/4"	-	55	78	54	71	41	94
XTIS755F	3/4"	2.3/16	-	78	54	71	41	94
XTIS7560	3/4"	-	60	82	52	75	45	98
XTIS7560F	3/4"	2.3/8	-	82	54	75	45	98
XTIS124	1"	-	24	42	54	55	21	100
XTIS127	1"	-	27	46	54	55	23	100
XTIS127F	1"	1.1/16	-	46	54	55	23	100
XTIS130	1"	-	30	50	54	57	24	100
XTIS131F	1"	1.1/4	-	51	54	57	24	100
XTIS132	1"	-	32	51	54	57	26	100
XTIS136	1"	-	36	54	54	60	28	100
XTIS136F	1"	1.7/16	-	54	54	60	28	100
XTIS141	1"	-	41	63	54	64	36	100
XTIS141F	1"	1.5/8	-	63	54	64	36	100
XTIS146	1"	-	46	70	54	69	36	100
XTIS146F	1"	1.13/16	-	70	54	69	36	100
XTIS150	1"	-	50	73	54	72	36	100
XTIS151F	1"	2	-	73	54	72	39	100
XTIS155	1"	-	55	82	54	76	41	105
XTIS155F	1"	2.3/16	-	82	54	80	41	105
XTIS160	1"	-	60	86	54	82	45	112
XTIS160F	1"	2.3/8	-	88	54	85	45	112
XTIS165	1"	-	65	92	54	85	46	118
XTIS165F	1"	2.9/16	-	92	54	85	46	118
XTIS170	1"	-	70	96	54	88	50	124
XTIS170F	1"	2.3/4	-	96	54	88	50	124
XTIS175	1"	-	75	100	86	92	57	124
XTIS175F	1"	2.15/16	-	100	86	92	57	124
XTIS179F	1"	3.18	-	105	86	97	57	124
XTIS180	1"	-	80	105	86	97	62	132
XTIS185	1"	-	85	115	86	100	62	132
XTIS188F	1"	3.1/2	-	121	86	104	62	140
XTIS190	1"	-	90	127	86	104	62	140
XTIS195	1"	-	95	135	86	106	62	140
XTIS197F	1"	3.7/8	-	135	86	112	62	143

Model	Square Drive	Nut A/F Inch	Nut A/F mm	D1	D2	S	T	L
XTIS1100	1"	-	100	135	86	112	62	143
XTIS1536	1.1/2"	-	36	64	86	80	28	130
XTIS1541	1.1/2"	-	41	69	86	83	32	130
XTIS1546	1.1/2"	-	46	76	86	86	36	130
XTIS1546F	1.1/2"	1.13/16	-	76	86	86	36	130
XTIS1550	1.1/2"	-	50	81	86	90	39	130
XTIS1550F	1.1/2"	2	-	81	86	90	39	130
XTIS1555	1.1/2"	-	55	88	86	95	41	140
XTIS1555F	1.1/2"	2.3/16	-	88	86	95	41	140
XTIS1560	1.1/2"	-	60	96	86	98	45	140
XTIS1560F	1.1/2"	2.3/8	-	96	86	98	45	140
XTIS1565	1.1/2"	-	65	102	86	102	46	140
XTIS1565F	1.1/2"	2.9/16	-	102	86	102	46	140
XTIS1570	1.1/2"	-	70	108	86	102	50	150
XTIS1570F	1.1/2"	2.3/4	-	108	86	102	50	150
XTIS1575	1.1/2"	-	75	116	86	108	57	150
XTIS1575F	1.1/2"	2.15/16	-	116	86	108	57	150
XTIS1580	1.1/2"	-	80	120	86	110	62	150
XTIS1580F	1.1/2"	3.1/8	-	120	86	110	62	150
XTIS1585	1.1/2"	-	85	130	86	115	62	170
XTIS1590	1.1/2"	-	90	135	125	118	65	170
XTIS1590F	1.1/2"	3.1/2	-	135	125	118	65	170
XTIS1595	1.1/2"	-	95	140	125	118	65	170
XTIS15100	1.1/2"	-	100	148	125	128	75	190
XTIS15100F	1.1/2"	3.7/8	-	148	125	128	75	190
XTIS15105	1.1/2"	-	105	155	125	133	80	190
XTIS15105F	1.1/2"	4.1/4	-	155	125	133	80	190
XTIS15110	1.1/2"	-	110	161	150	138	85	200
XTIS15115	1.1/2"	-	115	161	150	143	94	200
XTIS15115F	1.1/2"	4.5/8	-	175	150	149	94	200
XTIS2580	2.1/2"	-	80	135	125	140	62	190
XTIS2580F	2.1/2"	3.1/8	-	135	125	140	62	190
XTIS2585	2.1/2"	-	85	140	125	140	62	190
XTIS2590	2.1/2"	-	90	145	125	140	65	190
XTIS2595	2.1/2"	-	95	155	125	150	70	190
XTIS2595F	2.1/2"	3.7/8	-	155	125	150	70	190
XTIS25100	2.1/2"	-	100	160	125	150	76	200
XTIS25105	2.1/2"	-	105	165	125	160	80	200
XTIS25110	2.1/2"	-	110	174	150	160	85	210
XTIS25115	2.1/2"	-	115	180	150	170	90	210
XTIS25115F	2.1/2"	4.1/2	-	180	150	170	90	210
XTIS25125F	2.1/2"	5	-	195	150	175	98	220
XTIS25130	2.1/2"	-	130	195	150	175	98	220
XTIS25135F	2.1/2"	5.3/8	-	205	150	180	102	220
XTIS25145	2.1/2"	-	145	220	150	180	105	230
XTIS25145F	2.1/2"	5.3/4	-	220	150	180	105	230
XTIS25155F	2.1/2"	6.1/8	-	230	180	190	110	250
XTIS25165F	2.1/2"	6.1/2	-	240	180	200	120	-
XTIS25175F	2.1/2"	6.1/8	-	255	180	200	120	-
