Bolt Tensioning SolutionsReducer

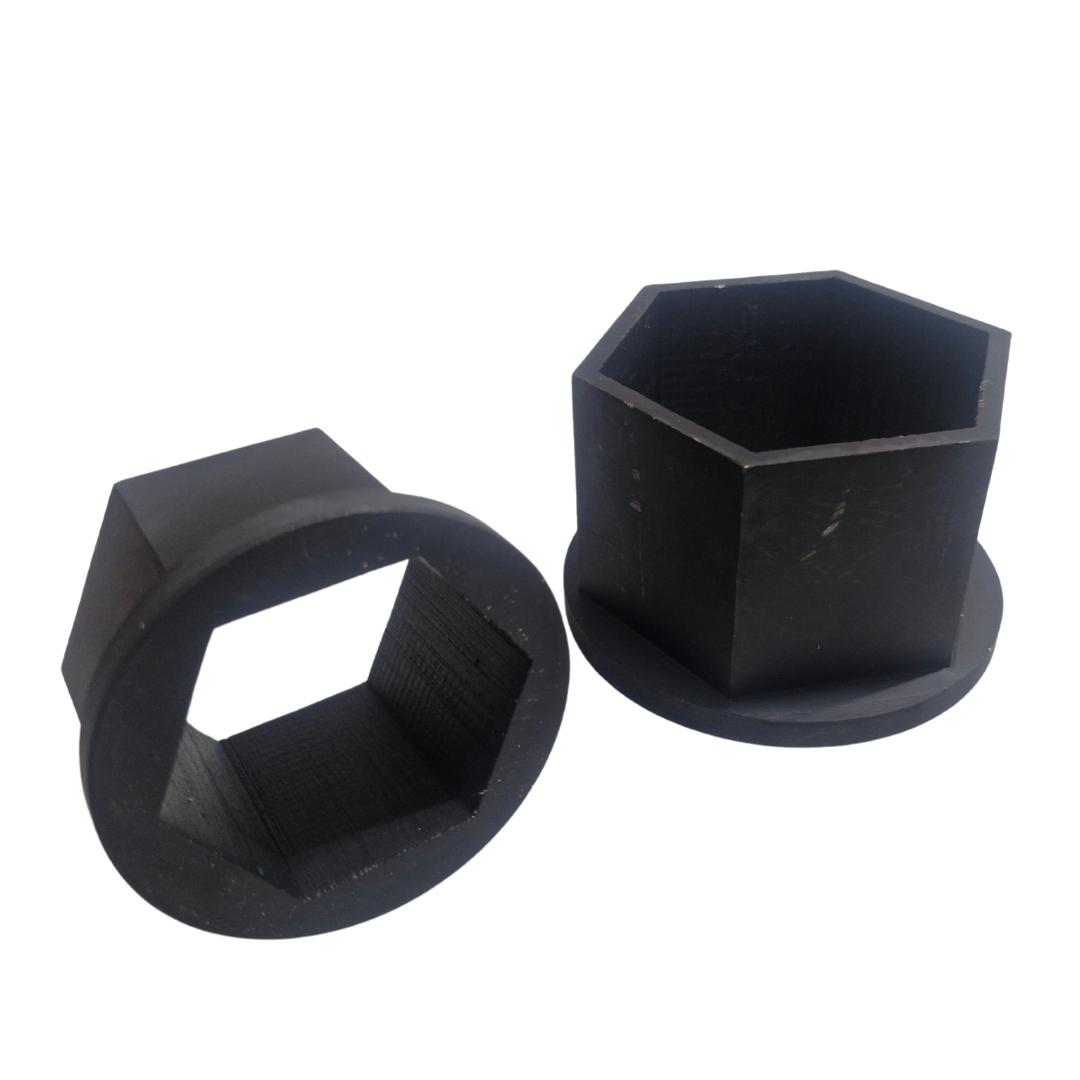

Hexagon Reducer Bushes
To reduce the Female hexagon A/F size of the XTH Series these XTORC Hexagon Reducer Bushes offer an easy and economical solution. Just select your outside A/F size (i.e Ratchet Head A/F size) and the required inside A/F size to determine the Model number.
Hexagon Reducer Bush Specifications (Type 1)
| Outside A/F size | Inside A/F size | XTH-2 Height-1.25" Model Number | XTH-4 Height-1.625" Model Number | XTH-8 Height-2.1" Model Number | XTH-14 Height-2.55" Model Number | XTH-32 Height-3.34" Model Number |
|---|---|---|---|---|---|---|
| 11" | 11h6" | XHR-2-125-106 | XHR-4-125-106 | - | - | - |
| 17/16" | 11/16" | XHR-2-143-106 | XHR-4-143-106 | - | - | - |
| 17h6 | 11/" | XHR-2-143-125 | XHR-4-143-125 | - | - | - |
| 15" | 11/4" | XHR-2-162-125 | XHR-4-162-125 | - | - | - |
| 15" | 17/6" | XHR-2-162-143 | XHR-4-162-143 | - | - | - |
| 1136" | 17/16" | XHR-2-181-143 | XHR-4-181-143 | - | - | - |
| 1136" | 15/" | XHR-2-181-162 | XHR-4-181-162 | XHR-8-181-162 | - | - |
| 2" | 15/" | XHR-2-200-162 | XHR-4-200-162 | XHR-8-200-162 | - | - |
| 2" | 113" | XHR-2-200-181 | XHR-4-200-181 | XHR-8-200-181 | - | - |
| 23/16" | 15/" | XHR-2-218-162 | XHR-4-218-162 | XHR-8-218-162 | - | - |
| 23/16" | 113/16" | XHR-2-218-181 | XHR-4-218-181 | XHR-8-218-181 | - | - |
| 23/16" | 2" | XHR-2-218-200 | XHR-4-218-200 | XHR-8-218-200 | - | - |
| 23" | 113" | XHR-2-237-181 | XHR-4-237-181 | XHR-8-237-181 | - | - |
| 23" | 2" | XHR-2-237-200 | XHR-4-237-200 | XHR-8-237-200 | XHR-14-237-200 | - |
| 23%" | 23/16" | XHR-2-237-218 | XHR-4-237-218 | XHR-8-237-218 | XHR-14-237-218 | - |
| 2%16" | 2" | - | XHR-4-256-200 | XHR-8-256-200 | XHR-14-256-200 | - |
| 2^0 16"" | 23/16" | - | XHR-4-256-218 | XHR-8-256-218 | XHR-14-256-218 | - |
| 2%16" | 23" | - | XHR-4-256-237 | XHR-8-256-237 | XHR-14-256-237 | - |
| 23" | 23/16" | - | XHR-4-275-218 | XHR-8-275-218 | XHR-14-275-218 | - |
| 23" | 23" | - | XHR-4-275-218 | XHR-8-275-237 | XHR-14-275-237 | - |
| 23" | 2^0/6" | - | XHR-4-275-256 | XHR-8-275-256 | XHR-14-275-256 | - |
| 2156" | 23" | - | XHR-4-293-237 | XHR-8-293-237 | XHR-14-293-237 | - |
| 215h6" | 26" | - | XHR-4-293-256 | XHR-8-293-256 | XHR-14-293-256 | - |
| 2156" | 23" | - | XHR-4-293-275 | XHR-8-293-275 | XHR-14-293-275 | - |
| 31" | 2%16" | - | XHR-4-312-256 | XHR-8-312-256 | XHR-14-312-256 | - |
| 31" | 23" | - | XHR-4-312-275 | XHR-8-312-275 | XHR-14-312-275 | - |
| 31" | 215/16" | - | XHR-4-312-293 | XHR-8-312-293 | XHR-14-312-293 | - |
| 31" | 215" | - | - | XHR-8-350-293 | XHR-14-350-293 | - |
| 3^1h" | 3" | - | - | XHR-8-350-312 | XHR-14-350-312 | - |
| 37k" | 31/8" | - | - | XHR-8-387-312 | XHR-14-387-312 | - |
| 37" | 3" | - | - | XHR-8-387-350 | XHR-14-387-350 | - |
| 4^1k" | 31/2" | - | - | XHR-8-412-350 | XHR-14-412-350 | - |
| 41" | 37" | - | - | XHR-8-412-387 | XHR-14-412-387 | - |
| 45f" | 37" | - | - | - | - | - |
| 45/" | 4 1/4" | - | - | - | - | XHR-32-462-425 |
| 5" | 4%" | - | - | - | - | XHR-32-500-425 |
| 5" | 45/" | - | - | - | - | XHR-32-500-462 |
| 55" | 45%" | - | - | - | - | XHR-32-500-462 |
| 55/" | 5" | - | - | - | - | XHR-32-531-500 |
| 53/" | 5" | - | - | - | - | XHR-32-575-500 |
| 53" | 53" | - | - | - | - | XHR-32-612-573 |
| 61" | 53" | - | - | - | - | XHR-32-612-573 |
| 6" | 5 3/4" | - | - | - | - | XHR-32-650-575 |
| 6^1h" | 53" | - | - | - | - | XHR-32-650-575 |
| 6^1h" | 6%" | - | - | - | - | XHR-32-650-612 |
| 67" | 6% | - | - | - | - | XHR-32-687-612 |
| 67" | 6%" | - | - | - | - | XHR-32-687-650 |
| 73%" | 61/" | - | - | - | - | XHR-32-718-650 |
| 73h" | 67/ | - | - | - | - | XHR-32-718-687 |
| 77% | 67k" | - | - | - | - | XHR-32-744-687 |
| 77h" | 73" | - | - | - | - | XHR-32-744-718 |
| 75%" | 6%" | - | - | - | - | XHR-32-762-687 |
| 75%" | 77" | - | - | - | - | XHR-32-762-744 |
| 77" | 7%" | - | - | - | - | XHR-32-787-744 |
| 77" | 75%" | - | - | - | - | XHR-32-787-762 |
Hexagon Reducer Bush Specifications (Type 2)
| Outside A/F size mm | Inside A/F size mm | XTH-2 Height-32mm Model number | XTH-4 Height-42mm Model number | XTH-8 Height-53mm Model number | XTH-14 Height-64mm Model number | XTH-32 Height-85mm Model number |
|---|---|---|---|---|---|---|
| 30 | 24 | XHR-2-30-24 | - | - | - | - |
| 32 | 24 | XHR-2-32-24 | - | - | - | - |
| 32 | 27 | XHR-2-32-27 | - | - | - | - |
| 36 | 30 | XHR-2-36-30 | - | - | - | - |
| 41 | 36 | XHR-2-41-36 | XHR-4-41-36 | - | - | - |
| 46 | 36 | XHR-2-46-36 | XHR-4-46-36 | - | - | - |
| 46 | 41 | XHR-2-46-41 | XHR-4-46-41 | XHR-8-46-41 | - | - |
| 50 | 41 | XHR-2-50-41 | XHR-4-50-41 | XHR-8-50-41 | - | - |
| 50 | 46 | XHR-2-50-46 | XHR-4-50-46 | XHR-8-50-46 | - | - |
| 55 | 41 | XHR-2-55-41 | XHR-4-55-41 | XHR-8-55-41 | - | - |
| 55 | 46 | XHR-2-55-46 | XHR-4-55-46 | XHR-8-55-46 | - | - |
| 55 | 50 | XHR-2-55-50 | XHR-4-55-50 | XHR-8-55-50 | - | - |
| 60 | 46 | XHR-2-60-46 | XHR-4-60-46 | XHR-8-60-46 | - | - |
| 60 | 50 | - | XHR-4-60-50 | XHR-8-60-50 | XHR-14-60-50 | - |
| 60 | 55 | - | XHR-4-60-55 | XHR-8-60-55 | XHR-14-60-55 | - |
| 65 | 50 | - | XHR-4-65-50 | XHR-8-65-50 | XHR-14-65-50 | - |
| 65 | 55 | - | XHR-4-65-55 | XHR-8-65-55 | XHR-14-65-55 | - |
| 65 | 60 | - | XHR-4-65-60 | XHR-8-65-60 | XHR-14-65-60 | - |
| 70 | 55 | - | XHR-4-70-55 | XHR-8-70-55 | XHR-14-70-55 | - |
| 70 | 60 | - | XHR-4-70-60 | XHR-8-70-60 | XHR-14-70-60 | - |
| 70 | 65 | - | XHR-4-70-65 | XHR-8-75-60 | XHR-14-70-65 | - |
| 75 | 60 | - | XHR-4-75-60 | XHR-8-75-65 | XHR-14-75-60 | - |
| 75 | 70 | - | XHR-4-75-70 | XHR-8-75-70 | XHR-14-75-65 | - |
| 80 | 65 | - | XHR-4-80-65 | XHR-8-80-65 | XHR-14-75-70 | - |
| 80 | 70 | - | XHR-4-80-70 | XHR-8-80-70 | XHR-14-80-65 | - |
| 80 | 75 | - | XHR-4-80-70 | XHR-8-80-75 | XHR-14-80-70 | - |
| 85 | 70 | - | - | XHR-8-85-70 | XHR-14-80-75 | - |
| 85 | 75 | - | - | XHR-8-85-75 | XHR-14-85-70 | - |
| 85 | 80 | - | - | XHR-8-85-80 | XHR-14-85-75 | - |
| 90 | 75 | - | - | XHR-8-90-75 | XHR-14-85-80 | - |
| 90 | 80 | - | - | XHR-8-90-80 | XHR-14-90-75 | - |
| 90 | 85 | - | - | XHR-8-90-85 | XHR-14-90-80 | - |
| 95 | 80 | - | - | XHR-8-95-80 | XHR-14-90-85 | - |
| 95 | 85 | - | - | XHR-8-95-85 | XHR-14-95-80 | - |
| 95 | 90 | - | - | XHR-8-95-90 | XHR-14-95-85 | - |
| 100 | 85 | - | - | XHR-8-100-85 | XHR-14-95-90 | - |
| 100 | 90 | - | - | XHR-8-100-90 | XHR-14-100-85 | - |
| 100 | 95 | - | - | XHR-8-100-95 | XHR-14-100-90 | - |
| 105 | 90 | - | - | XHR-8-105-90 | XHR-14-100-95 | - |
| 105 | 95 | - | - | XHR-8-105-95 | XHR-14-105-90 | - |
| 105 | 100 | - | - | XHR-8-105-100 | XHR-14-105-95 | - |
| 110 | 95 | - | - | - | XHR-14-105-100 | XHR-32-110-95 |
| 110 | 100 | - | - | - | XHR-14-110-95 | XHR-32-110-100 |
| 110 | 105 | - | - | - | XHR-14-110-100 | XHR-32-110-105 |
| 115 | 100 | - | - | - | XHR-14-110-105 | XHR-32-115-100 |
| 115 | 105 | - | - | - | XHR-14-115-100 | XHR-32-115-105 |
| 115 | 110 | - | - | - | XHR-14-115-105 | XHR-32-115-110 |
| 135 | 110 | - | - | - | XHR-14-115-110 | XHR-32-135-110 |
| 135 | 115 | - | - | - | - | XHR-32-135-110 |
| 135 | 120 | - | - | - | - | XHR-32-135-130 |
| 145 | 110 | - | - | - | - | XHR-32-145-110 |
| 145 | 115 | - | - | - | - | XHR-32-145-115 |
| 145 | 130 | - | - | - | - | XHR-32-145-130 |
| 160 | 130 | - | - | - | - | XHR-32-160-130 |
| 160 | 145 | - | - | - | - | XHR-32-160-145 |
| 175 | 145 | - | - | - | - | XHR-32-175-145 |
| 175 | 160 | - | - | - | - | XHR-32-175-160 |
