Specialized ToolsPneumatic & Electric Powerpacks

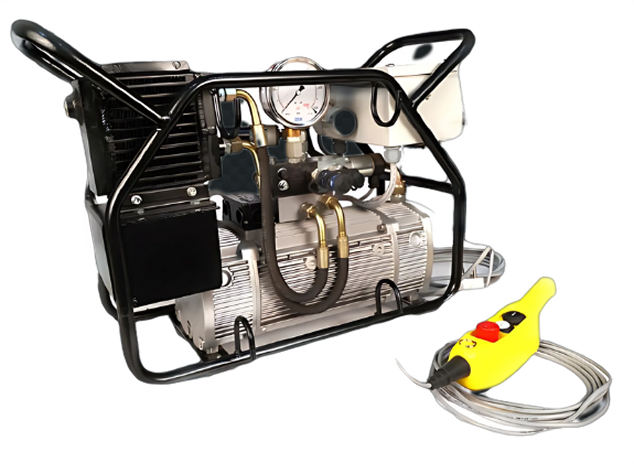

Pneumatic & Electric Powerpacks

EQUIPPED WITH SAFETY FEATURES

NOTE: Also available as Conventional Electric Power pack. Pump will be supplied with Remote Control Pendant

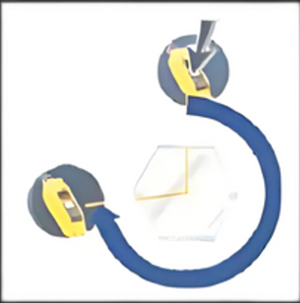

With Auto Cycle

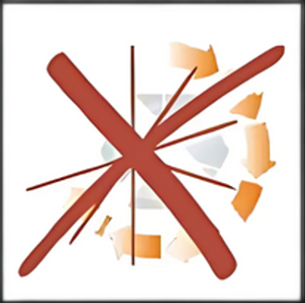

Without Auto Cycle

Technical Specification

Model No.	XEP-700
Power Rating / Flow Rate	1.5 KW
Maximum Pressure	700Bar / 10,000 PSI
Flow Rate	9.7LPM @ 70Bar 0.97LPM @ 700 Bar
Capacity	6 Ltr. / 2 Gallon

Fully Automatic Power Pack

Auto cycle for reliable operations
High repeatability in bolting process
Without pressing the button again and again

Temperature Management

In-built heat exchanger to cool the system
Thermal cut-off switch for rapid cooling and heat protection against coil burning
Compact cabinets
System is capable of automatically controlling temperature rise

Oil Immersed Motor

Oil-immersed motor for operations (Effective dissipation of heat generated) via cooling
Smooth running & extended service time

PLC Controlled System

Effectively controlled operations of power packs.
If the power pack remains idle continuously more than
3 minutes, it gets switched off automatically.
