Jack/Cylinder

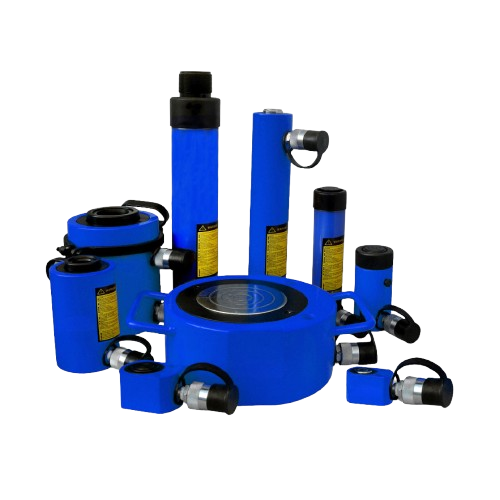

XTORC's Cylinders operate with a maximum pressure of 700 Bar. With Single and Double Acting ranges, XTORC's Cylinders show versatility in operational requirements and fulfill the need of the user. All Single Acting Cylinders are spring return and Double Acting Cylinders are oil return.

Download Catalog

SINGLE-ACTING HOLLOW HYDRAULIC CYLINDER

Cylinder Capacity ton (kN)	Stroke (mm)	Model Number	Oil Capacity (cm³)	Collapsed Height A (mm)	Extend Height B (mm)	Outside Dia. C (mm)	Cylinder Bore Dia. D (mm)	Plunger Dia. (Thread) E (mm)	Weight (Kg)
13 (125)	42	SAHH 130-42	76	130	172	76	55	35.5	3.4
13 (125)	76	SAHH 130-76	138	184	260	76	55	35.5	5.2
20 (215)	49	SAHH 200-49	174	162	211	101	77	54.5	8.2
20 (215)	155	SAHH 200-155	550	306	461	101	77	54.5	15
30 (326)	64	SAHH 300-64	307	180	244	115	90	64.5	11.5
30 (326)	155	SAHH 300-155	744	330	485	115	90	64.5	21.5
60 (576)	76	SAHH 600-76	640	247	323	159	125	94.5	28.2
60 (576)	153	SAHH 600-153	1278	323	476	159	125	94.5	35.5
95 (931)	76	SAHH 1000-76	1028	254	330	212	165	125	63.5

SINGLE ACTING HYDRAULIC CYLINDERS

Cylinder Capacity ton (kN)	Stroke (mm)	Model Number	Oil Capacity (cm³)	Collapsed Height A (mm)	Extend Height B (mm)	Outside Dia. C (mm)	Cylinder Bore Dia. D (mm)	Plunger Dia. (Thread) E (mm)	Weight (Kg)
5 (45)	25	SAH 5-25	18	110	135	40	30	25	1
	76	SAH 5-76	54	165	241	40	30	25	1.6
	127	SAH 5-127	90	215	342	40	30	25	2
	177	SAH 5-177	125	273	450	40	30	25	2.6
	232	SAH 5-232	164	323	555	40	30	25	3.1
10 (101)	54	SAH 10-54	86	121	175	59	45	35	2.3
	105	SAH 10-105	187	171	276	59	45	35	3
	156	SAH 10-156	248	247	403	59	45	35	4.1
	203	SAH 10-203	323	298	501	59	45	35	5.8
	257	SAH 10-257	409	349	606	59	45	35	6.6
	304	SAH 10-304	483	400	707	59	45	35	7.5
	356	SAH 10-356	566	450	806	59	45	35	8.3
15 (142)	25	SAH 15-25	53	124	149	70	52	42	3.5
	51	SAH 15-51	108	149	200	70	52	42	4
	101	SAH 15-101	214	200	301	70	52	42	5
	152	SAH 15-152	323	271	423	70	52	42	7
	203	SAH 15-203	431	322	525	70	52	42	8
	254	SAH 15-254	539	373	627	70	52	42	9
	305	SAH 15-305	647	423	728	70	52	42	10
	356	SAH 15-356	756	474	830	70	52	42	11
25 (232)	26	SAH 25-26	86	139	165	85	65	56	6
	50	SAH 25-50	166	165	215	85	65	56	7
	102	SAH 25-102	338	215	317	85	65	56	8
	158	SAH 25-158	524	273	431	85	65	56	10
	210	SAH 25-210	696	323	533	85	65	56	12
	261	SAH 25-261	866	374	635	85	65	56	14
	311	SAH 25-311	1031	425	736	85	65	56	15
	362	SAH 25-362	1201	476	838	85	65	56	17
30 (295)	50	SAH 30-50	209	228	278	101	73	60	13
	100	SAH 30-100	418	278	378	101	73	60	16
	209	SAH 30-209	874	387	596	101	73	60	19
	300	SAH 30-300	1255	478	778	101	73	60	27
50 (468)	51	SAH 50-51	361	176	206	127	95	80	19
	101	SAH 50-101	716	227	307	127	95	80	23
	159	SAH 50-159	1126	282	422	127	95	80	27
	337	SAH 50-337	2388	460	797	127	95	80	37
75 (718)	156	SAH 75-156	1620	285	441	150	115	100	33
75 (718)	333	SAH 75-333	3457	492	825	150	115	100	54
95 (933)	168	SAH 100-168	2229	357	525	177	130	120	59
95 (933)	260	SAH 100-260	3449	449	709	177	130	120	72

SINGLE ACTING HIGH TONNAGE HYDRAULIC CYLINDER

ton	Stroke (mm)	Model Number	Cylinder Effective Area (cm³)	Oil Capacity (cm³)	Collapsed Height (mm)	Extend Height (mm)	Outside Dia. (mm)	Cylinder Bore Dia. (mm)	Plunger Dia. (mm)	Base to Advance Port (mm)	Weight (Kg)
50	50	STH 50-50	78.5	392	188	238	140	100	70	41	21.5
	100	STH 50-100	78.5	784	238	338	140	100	70	41	26
	150	STH 50-150	78.5	1176	288	438	140	100	70	41	31
	200	STH 50-200	78.5	1568	338	538	140	100	70	41	35
	300	STH 50-300	78.5	2352	438	738	140	100	70	41	44
100	50	STH 100-50	153.9	770	216	266	180	140	100	54	42
	100	STH 100-100	153.9	1540	266	366	180	140	100	54	49
	150	STH 100-150	153.9	2310	316	466	180	140	100	54	56
	200	STH 100-200	153.9	3080	366	566	180	140	100	54	63
	300	STH 100-300	153.9	4620	466	766	180	140	100	54	70
150	50	STH 150-50	201	1005	224	274	210	160	112	58	44
	100	STH 150-100	201	2010	274	374	210	160	112	58	57
	150	STH 150-150	201	3015	324	474	210	160	112	58	70
	200	STH 150-200	201	4020	374	574	210	160	112	58	83
	300	STH 150-300	201	6030	474	774	210	160	112	58	109
200	50	STH 200-50	314	1570	248	298	250	200	150	64	84
	150	STH 200-150	314	4712	348	498	250	200	150	64	118
	300	STH 200-300	314	9423	498	798	250	200	150	64	152
320	50	STH 300-50	490.6	2453	277	327	315	250	180	74	155
	150	STH 300-150	490.6	7359	377	527	315	250	180	74	195
	300	STH 300-300	490.6	14718	527	827	315	250	180	74	255
400	50	STH 400-50	572.3	2861	305	355	355	270	220	83	240
	150	STH 400-150	572.3	8583	405	555	355	270	220	83	310
	300	STH 400-300	572.3	17169	555	855	355	270	220	83	410
500	50	STH 500-50	803.8	4019	325	375	395	320	250	93	265
	150	STH 500-150	803.8	12057	425	575	395	320	250	93	353
	300	STH 500-300	803.8	24114	575	875	395	320	250	93	455
630	50	STH 600-50	1017.4	5087	386	436	450	360	280	115	487
	150	STH 600-150	1017.4	15261	486	636	450	360	280	115	579
	300	STH 600-300	1017.4	30522	638	938	450	360	280	115	717
800	50	STH 800-50	1256	6280	427	477	550	400	320	113	712
	150	STH 800-150	1256	18840	527	677	550	400	320	113	860
	300	STH 800-300	1256	37698	677	977	550	400	320	113	1082

SINGLE ACTING LOW PROFILE LOCK-NUT HYDRAULIC CYLINDER

Cylinder Capacity ton (kN)	Stroke (mm)	Model Number	Oil Capacity (cm³)	Collapsed Height (mm) A	Extended Height (mm) B	Outside Dia. (mm) C	Cylinder Bore Dia. (mm) D	Plunger Dia. (Thread) E	Base to Advance port F	Saddle Dia. (mm) H	Saddle Protrusion from piston (mm) J	Saddle Max. tilt angle R	Plunger Dia. (mm)	Weight (Kg)
60 (606)	50	SLLH 60-50	432	125	175	140	106	Tr104x4	19	96	6	5	28	15
100 (1027)	50	SLLH 100-50	734	137	187	180	137	Tr136x6	21	126	8	5	31	27
160 (1619)	50	SLLH 160-50	1040	148	193	224	172	Tr171x8	27	160	9	5	40	45.5
200 (1999)	45	SLLH 200-45	1285	155	200	245	190.7	Tr190x6	30	180	10	5	43	57
260 (2560)	50	SLLH 250-50	1695	159	204	275	216	Tr215x6	32	200	11	5	44	74
400 (3916)	50	SLLH 400-50	2517	178	223	350	270	Tr266x8	41	251	11	4	55	134
520 (5114)	50	SLLH 500-50	3287	192	237	400	305	Tr304x6	48	289	10	3	62	188

SINGLE ACTING LOW PROFILE HYDRAULIC CYLINDER

Cylinder Capacity ton (kN)	Stroke (mm)	Model Number	Oil Capacity (cm³)	Collapsed Height (mm) A	Extended Height (mm) B	Outside Dia. (mm) C	Cylinder Bore Dia. (mm) D	Plunger Dia. (Thread) E	Base to Advance port F	Saddle Protrusion from plgr (mm) J	Plunger to mounting hole (") N	Weight (Kg)
10 (101)	38	SLH 10-38	60	88	126	78	45	35	23	2	-	4
20 (201)	45	SLH 20-45	140	97	142	96	63	50	23	2	-	6.9
30 (295)	64	SLH 30-64	290	117	181	109	76	60	23	2	-	9.8
50 (435)	60	SLH 50-60	471	120	180	233	200	80	24	2	-	13.3
75 (718)	50	SLH 75-50	584	116	166	157	122	100	21	2	-
100 (887)	57	SLH 100-57	877	141	198	176	140	112	31	2	-	24.5
150 (1386)	51	SLH 150-51	1184	141	192	215	172	145	28	2	-	42
150 (1386)	80	SLH 150-80	1860	170	250	215	172	145	28	2	-	50

SINGLE ACTING LOW FLAT HYDRAULIC CYLINDER

Cylinder Capacity ton (kN)	Stroke (mm)	Model Number	Oil Capacity (cm³)
Cylinder Capacity ton (kN)	Stroke (mm)	Model Number	Oil Capacity (cm³)	Collapsed Height A (mm)	Extended Height B (mm)	Outside Dia. C (mm)	Cylinder Bore Dia. D (mm)	Plunger Dia. (Thread) E (mm)	Base to Advance port F (mm)	Saddle Protrusion from plgr J (mm)	Saddle Max. tilt angle M (")	Plunger to mounting hole N (mm)	Weight (Kg)
10 (101)	11	SLFH 10-11	18	44	55	83x60	45	35	23	1	31.5	34	1.4
20 (201)	12	SLFH 20-12	37	52	64	102x80	63	50	23	1	41	39	2.2
30 (295)	13	SLFH 30-13	59	58	71	117x97	76	60	23	1	48.5	47	4.2
50 (435)	16	SLFH 50-16	125	67	83	150x125	100	80	23	1	63	60	7.4
75 (718)	16	SLFH 75-16	187	79	96	177x152	122	100	23	1	76.5	73	12.7
100 (887)	16	SLFH 100-16	246	87	103	203x179	140	112	23	1	89.5	84	15.5
150 (1386)	16	SLFH 150-16	371	95	111	236x212	172	145	23	1	106	92	28.7

DOUBLE ACTING HOLLOW HYDRAULIC CYLINDER

Cylinder Capacity ton (kN)	Stroke (mm)	Model Number	Max. Cylinder Capacity (kN)		Oil Capacity (cm³)		Collapsed Height A (mm)	Extended Height B (mm)	Outside Dia. C (mm)	Cylinder Bore Dia. D (mm)	Plunger Dia. (Thread) E (mm)	Weight (Kg)
Cylinder Capacity ton (kN)	Stroke (mm)	Model Number	Advance	Retract	Advance	Retract	Collapsed Height A (mm)	Extended Height B (mm)	Outside Dia. C (mm)	Cylinder Bore Dia. D (mm)	Plunger Dia. (Thread) E (mm)	Weight (Kg)
30	178	DHH 300-178	326	210	855	550	330	508	115	90	64.5	21
30	258	DHH 300-258	326	210	1240	798	431	689	115	90	64.5	27
60	89	DHH 600-89	576	360	749	468	247	336	159	125	94.5	28
	166	DHH 600-166	576	360	1398	873	323	489	159	125	94.5	35
	257	DHH 600-257	576	360	2146	1352	438	695	159	125	94.5	45
95	38	DHH 1000-38	931	627	517	345	165	203	212	165	125	33
	76	DHH 1000-76	931	627	1028	692	254	330	212	165	125	61
	153	DHH 1000-153	931	627	2070	1394	342	495	212	165	125	79
	257	DHH 1000-257	931	627	3477	2341	460	717	212	165	125	106
145	203	DHH 1500-203	1429	749	4191	2198	359	562	247	190.5	150	111

DOUBLE ACTING HOLLOW HYDRAULIC CYLINDER

Cylinder Capacity ton (kN)	Stroke (mm)	Model Number	Max. Cylinder Capacity (kN)		Oil Capacity (cm³)		Collapsed Height A (mm)	Extended Height B (mm)	Outside Dia. C (mm)	Cylinder Bore Dia. D (mm)	Plunger Dia. (Thread) E (mm)	Weight (Kg)
Cylinder Capacity ton (kN)	Stroke (mm)	Model Number	Advance	Retract	Advance	Retract	Collapsed Height A (mm)	Extended Height B (mm)	Outside Dia. C (mm)	Cylinder Bore Dia. D (mm)	Plunger Dia. (Thread) E (mm)	Weight (Kg)
30	178	DHH 300-178	326	210	855	550	330	508	115	90	64.5	21
30	258	DHH 300-258	326	210	1240	798	431	689	115	90	64.5	27
60	89	DHH 600-89	576	360	749	468	247	336	159	125	94.5	28
	166	DHH 600-166	576	360	1398	873	323	489	159	125	94.5	35
	257	DHH 600-257	576	360	2146	1352	438	695	159	125	94.5	45
95	38	DHH 1000-38	931	627	517	345	165	203	212	165	125	33
	76	DHH 1000-76	931	627	1028	692	254	330	212	165	125	61
	153	DHH 1000-153	931	627	2070	1394	342	495	212	165	125	79
	257	DHH 1000-257	931	627	3477	2341	460	717	212	165	125	106
145	203	DHH 1500-203	1429	749	4191	2198	359	562	247	190.5	150	111

DOUBLE ACTING HIGH TONNAGE HYDRAULIC CYLINDER

Cylinder Capacity ton (kN)	Stroke (mm)	Model Number	Max. Cylinder Capacity (kN)		Oil Capacity (cm³)		Collapsed Height A (mm)	Extended Height B (mm)	Outside Dia. C (mm)	Cylinder Bore Dia. D (mm)	Plunger Dia. (Thread) E (mm)	Weight (Kg)
Cylinder Capacity ton (kN)	Stroke (mm)	Model Number	Advance	Retract	Advance	Retract	Collapsed Height A (mm)	Extended Height B (mm)	Outside Dia. C (mm)	Cylinder Bore Dia. D (mm)	Plunger Dia. (Thread) E (mm)	Weight (Kg)
50	50	DHT50-50	500	255	392	200	188	238	140	100	70	21.5
	100	DHT50-100	500	255	784	400	238	338	140	100	70	26
	150	DHT50-150	500	255	1176	600	288	438	140	100	70	31
	200	DHT50-200	500	255	1568	800	338	538	140	100	70	35
	300	DHT50-300	500	255	2352	1200	438	738	140	100	70	44
100	50	DHT100-50	1000	490	770	377	216	266	180	140	100	42
	100	DHT100-100	1000	490	1540	754	266	366	180	140	100	49
	150	DHT100-150	1000	490	2310	1131	316	466	180	140	100	56
	200	DHT100-200	1000	490	3080	1508	366	566	180	140	100	63
	300	DHT100-300	1000	490	4620	2262	466	766	180	140	100	70
150	50	DHT150-50	1390	709	1005	512	224	274	210	160	112	44
	100	DHT150-100	1390	709	2010	1025	274	374	210	160	112	57
	150	DHT150-150	1390	709	3015	1537	324	474	210	160	112	70
	200	DHT150-200	1390	709	4020	2050	374	574	210	160	112	83
	300	DHT150-300	1390	709	6030	3075	474	774	210	160	112	109
200	100	DHT200-100	2000	875	3141	1374	296	396	250	200	150	109
	150	DHT200-150	2000	875	4712	2061	346	496	250	200	150	121
	200	DHT200-200	2000	875	6282	2748	396	596	250	200	150	132
	300	DHT200-300	2000	875	9423	4122	496	796	250	200	150	155
300	100	DHT300-100	3193	1537	4906	2363	327	427	315	250	180	180
	200	DHT300-200	3193	1537	9812	4726	427	627	315	250	180	220
	300	DHT300-300	3193	1537	14718	7089	527	827	315	250	180	260
400	100	DHT400-100	3919	1317	5723	1924	355	455	355	270	220	255
	200	DHT400-200	3919	1317	11446	3848	455	655	355	270	220	310
	300	DHT400-300	3919	1317	17169	5772	555	855	355	270	220	375
500	100	DHT500-100	5000	1948	8038	3133	375	475	395	320	250	326
	200	DHT500-200	5000	1948	16076	6266	475	675	395	320	250	394
	300	DHT500-300	5000	1948	24114	9399	575	875	395	320	250	462
600	100	DHT600-100	6300	2488	10174	4019	436	536	450	360	280	542
	200	DHT600-200	6300	2488	20348	8038	536	736	450	360	280	634
	300	DHT600-300	6300	2488	30522	12057	636	936	450	360	280	726
800	100	DHT800-100	8000	2880	12566	4522	477	577	550	400	320	796
	200	DHT800-200	8000	2880	25132	9044	577	777	550	400	320	944
	300	DHT800-300	8000	2880	37698	13566	677	977	550	400	320	1092
