Hex Drive - XTH Series

• Compact design with longer arm improves the reliability.
• More accurate and easier to use, since the wrench directly operates on the nuts.
• 360x160 degree swivel or 360x360 degree swivel allows the wrench to operate freely in confined areas.

XTH Series Technical Specifications

	Units	XTH-2		XTH-4		XTH-8		XTH-14	XTH-32
	Units	Min. Torque	NM	293	305	608	673	1192	1283	2222	5026	5351
Max. Torque	NM	2943	3051	6092	6733	11926	12834	22225	50258	53512
Min. Torque	FT.LBS	214	221	443	489	867	932	1615	3652	3888
Max. Torque	FT.LBS	2137	2217	4426	4891	8863	9323	16147	36511	38875
Across Flat	MM	19-55	55-60	34-65	70-80	46-95	100-105	50-117	110-155	160-180
Across Flat	INC	3/4-2.3/16	2.3/16-2.3/8	1.5/16-2.9/16	2.3/4-3.1/8	1.13/16-3.3/4	3.7/8-4.1/8	2-4.1/2	4.1/4-6.1/8	6.1/8-7.1/16
Weight	KG	1.5	1.5	3.2	3.2	5.3	5.3	9.8	15	15
Drive Unit	LBS	3.3	3.3	7	7	11.6	11.6	21.6	33	33
Weight	KG	1.7	1.85	4.1	4.2	8.7	8.8	11.5	32	35
Ratchet Unit	LBS	3.7	4	9	9.2	19	19.4	25	70	77

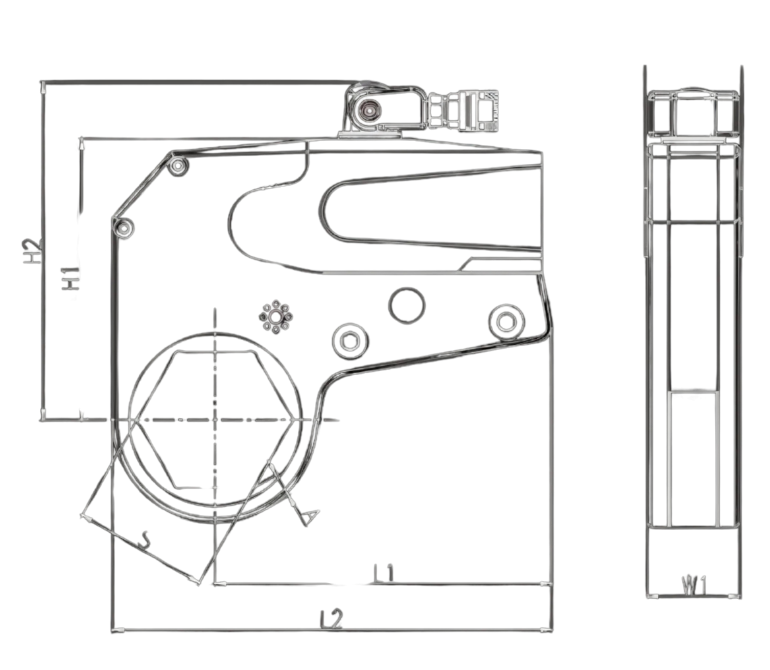

XTH Series Dimensional Data

	Units	XTH-2		XTH-4		XTH-8		XTH-14	XTH-32
	Units	Overall Length (L)	mm	179	183	223	223	287	287	350	435	447
Overall Length (L)	Inch	7.04	7.2	8.7	8.7	11.29	11.29	13.77	17.12	17.59
(H1)	mm	142	142	184	184	209	209	240	320	320
(H1)	Inch	5.59	5.59	7.24	7.24	8.22	8.22	9.4	12.59	12.59
(H2)	mm	109.5	109.5	143.5	143.5	185	185	205	290	290
(H2)	Inch	4.31	4.31	5.64	5.64	7.28	7.28	8.07	11.41	11.41
Width at Link (W1)	mm	32.2	32.2	40.6	40.6	52.5	52.5	63	83	83
Width at Link (W1)	Inch	1.26	1.26	1.59	1.59	2.06	2.06	2.48	3.26	3.26
Width at Cylinder (W2)	mm	34.4	34.4	49.5	49.5	61.5	61.5	81	93	93
Width at Cylinder (W2)	Inch	1.35	1.35	1.94	1.94	2.42	2.42	3.18	3.66	3.66
Nose Radius (R)	mm	22-43	43-46	33-55	55-60	42-76	76-81	52-92	90-116	116-128
R Min	mm	9.5	10.5	13.52	13.7	18	18	2	25.7	25.7
R Max	mm	12.2	10.75	17	17	20	20	25.5	27.5	27.5
