Specialized ToolsHand Pumps & Hoses
Hand Pumps & Hoses
Model No.: XHP-1500
Maximum Working Pressure: 1600 Bar
Tanks Size: 1.8 / 2.4 Ltr.

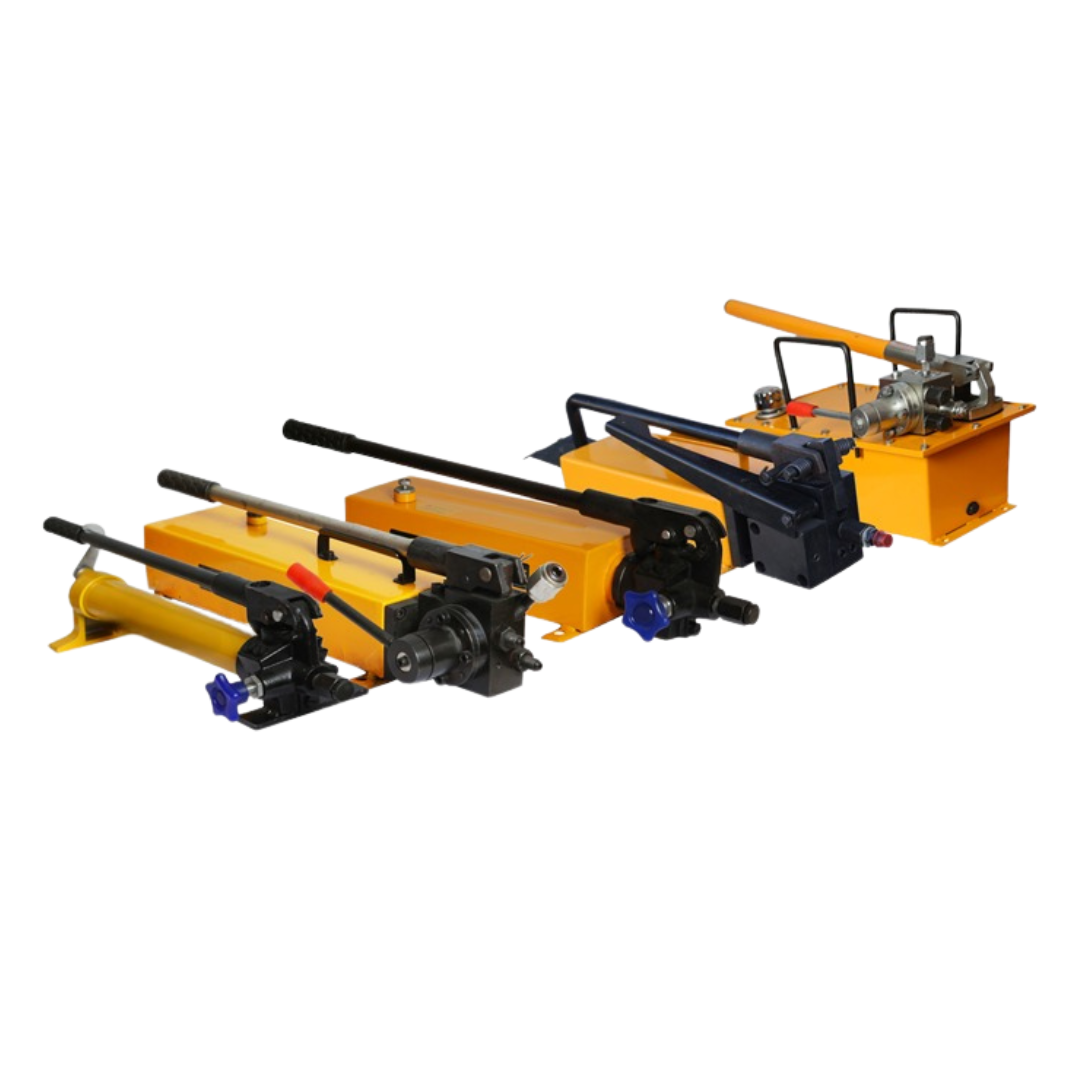

The XTORC Two-Stage Hand Pumps come with a Standard Pressure Gauge; this gives the user precise and safe control over the work carried out. The gauge is directly mounted onto the pump and is well protected by the specially designed pump lever.
- •Return connections on all pumps
- •Robust design
- •Aluminum Tank
- •Easy and simple maintenance
Technical Specifications
| Pump Type | Usable Oil Capacity (cm³) | Model Number | Pressure Rating (Bar) | Output Oil Volume Each Stroke (cm³) | Handle Force (N) | Dimensions (mm) | Output Adapter | Weight (Kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1st Stage | 2nd Stage | 1st Stage | 2nd Stage | |||||||||
| Double Speed | 655 | HH 7-0.7 | 25 | 700 | 15 | 2.6 | 300 | 520 | 133 | 119 | NPT 3/8" | 5.3 |
| 1440 | HH 7-1 | 25 | 700 | 32 | 2.5 | 577 | 120 | 170 | 6.3 | |||
| 2200 | HH 7-2 | 25 | 700 | 16 | 2.5 | 539 | 146 | 170 | 8 | |||
| 3240 | HH 7-3 | 25 | 700 | 32 | 2.5 | 582 | 200 | 170 | 10 | |||
| 5860 | HH 7-4 | 25 | 700 | 32 | 2.5 | 667 | 250 | 172 | 14.5 | |||
| 7500 | HH 7-8 | 14 | 700 | 126 | 4.8 | 742 | 308 | 270 | 27 | |||
| 1440 | HH 16-1 | 15 | 1600 | 32 | 2.5 | 375 | 577 | 120 | 170 | G1/4" | 6.3 | |
| 3240 | HH 16-3 | 15 | 1600 | 32 | 2.5 | 577 | 140 | 190 | 10 | |||
