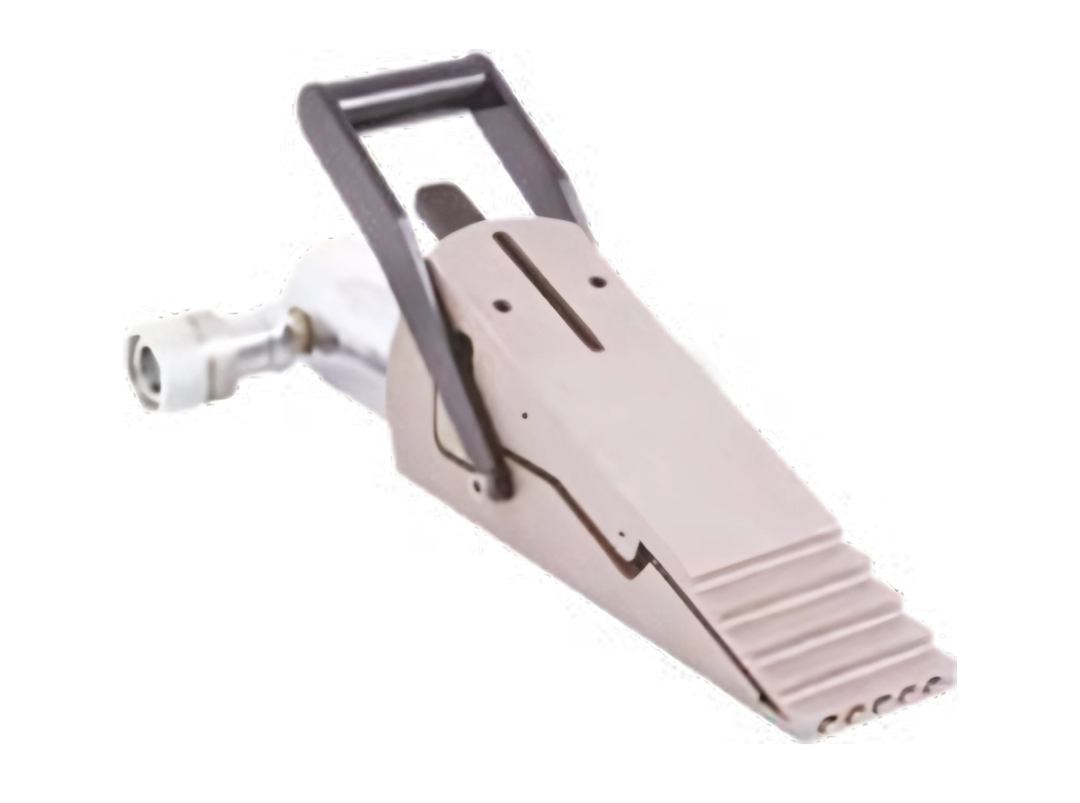

Vertical Lifting Wedge • XVWL Series

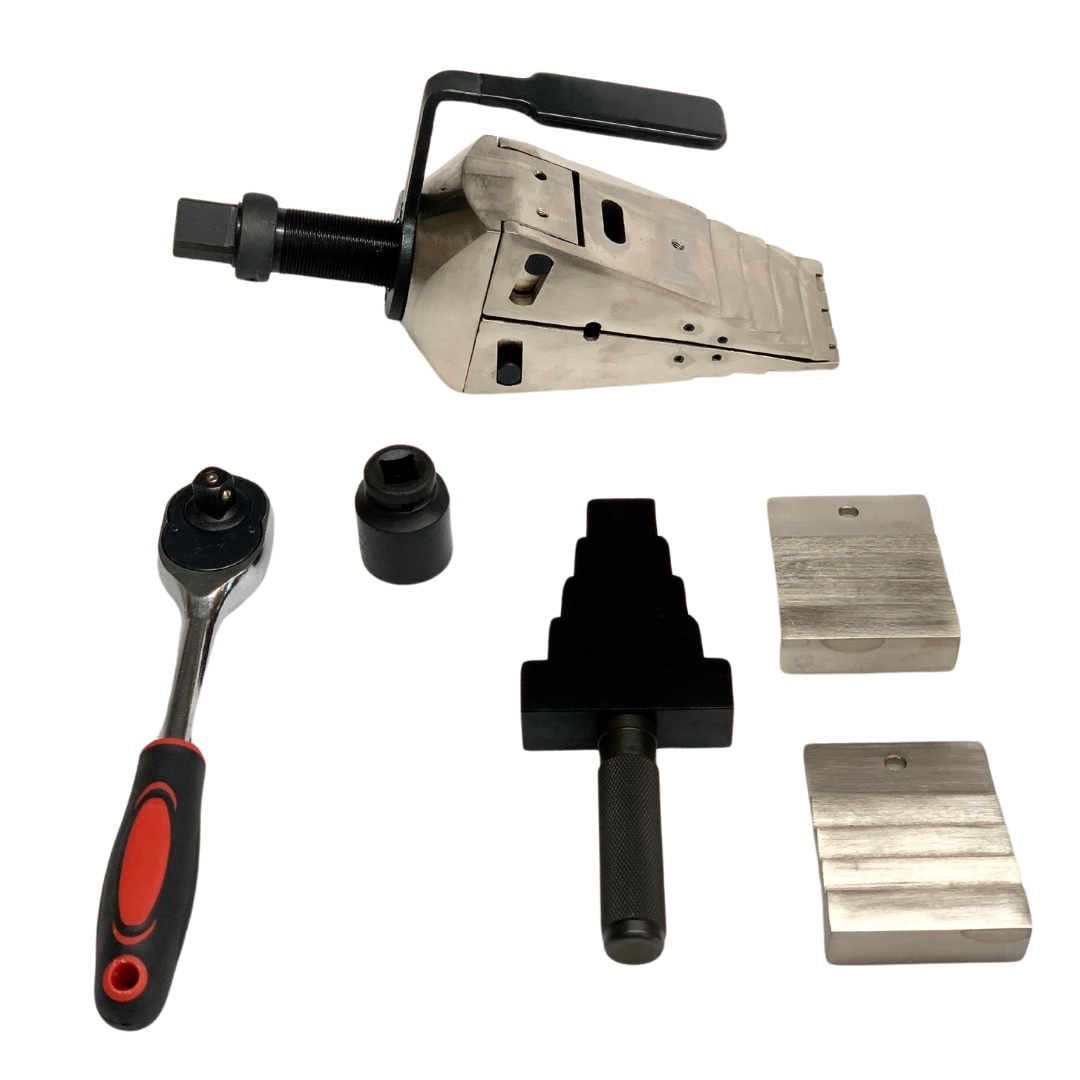

Flange Spreaders

The XTORC Hydraulic Vertical Lifting Wedge XVWL has been developed as an easy-to-use and cost-effective solution for heavy lifting where minimum clearance is available. It lifts objects vertically where an access gap of 3/8" (9.5mm) or more is available, delivering a secure and rapid lifting force of 16 Tons per tool.

Special Features

Access gap of only 3/8" (9.5mm) needed.
3/4" (19.0mm) vertical lift from each step.
Max. height of 50mm on 4th step.
Automatic spring return retraction.
Interlocking first step ensures safe hold.
No slippage — lifts in straight vertical plane.

Operating Clearance & Stepped Wedge Profile

Flange Spreaders Blueprint

XVWL Kit Options

MINI KIT

  • •1 x Hydraulic Vertical Lifting Wedge Assembly
  • •1 x Safety Block
  • •1 x Stepped Block
  • •1 x Instruction Manual
Mini Kit

STANDARD KIT

  • •1 x Hydraulic Vertical Lifting Wedge Assembly
  • •1 x 10,000 psi (700 Bar) Two Stage Hydraulic Hand Pump
  • •1 x 10,000 psi (700 Bar) Hydraulic Hose (6 ft)
  • •1 x Safety Block & 1 x Stepped Block
  • •1 x Instruction Manual & 1 x Carry Case
Standard Kit

HYDRAULIC SPREADING WEDGE (XWFS)

The XTORC Spreading Wedge (XWFS) is engineered as a lightweight, robust, and cost-effective solution for flange spreading, pipe joint separation, and maintenance operations where minimal access clearance is available.

Special Features:

Only requires an access gap of 1/4" (6mm).
Robust lightweight tool — just 7.2 kg (16 lbs).
10,000 psi (700 Bar) generates 14.0 Tons spreading force.
Automatic Spring Return for fast cycling.
Locking at first step ensures no slippage and maximum safety.

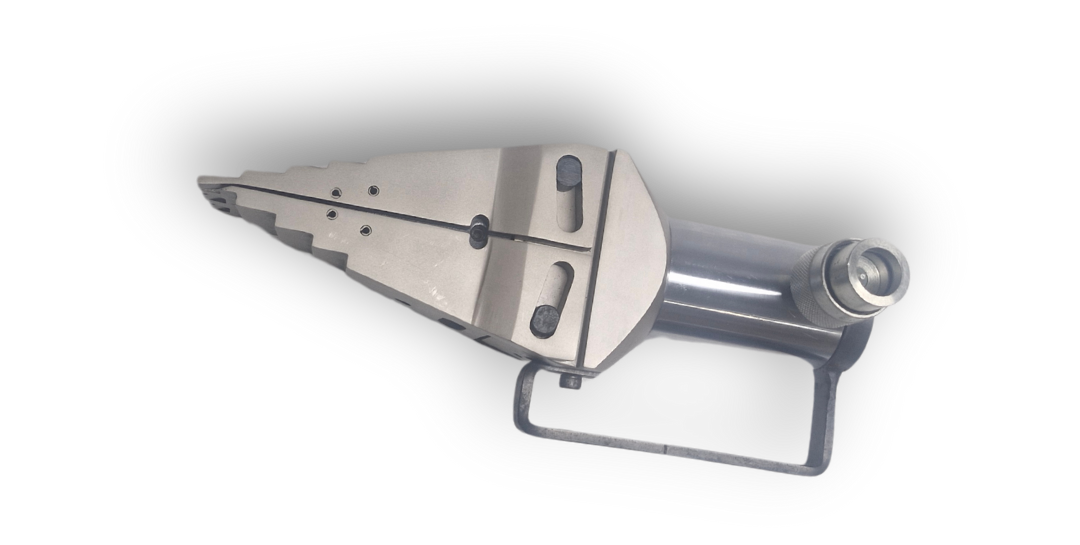

Hydraulic Spreading Wedge

XWFS Kit Options

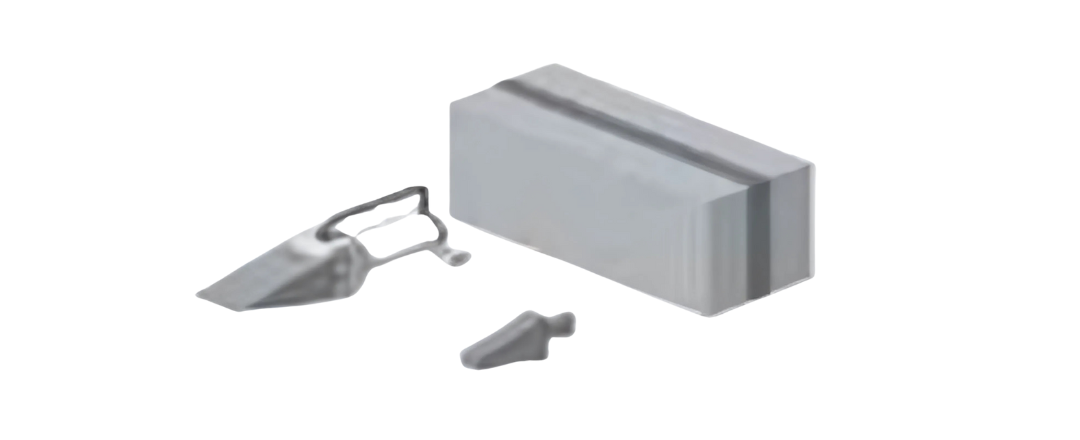

MINI KIT

  • •1 x Hydraulic Spreading Wedge Assembly
  • •1 x Safety Block
  • •1 x Instruction Manual
  • •1 x Carry Case
Mini Kit

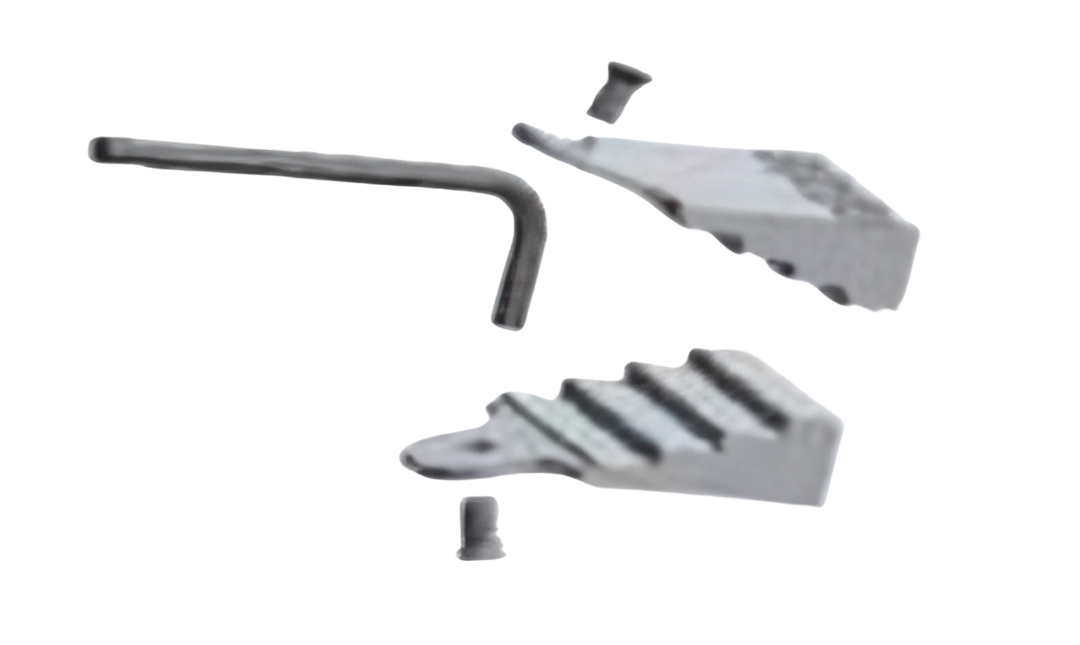

STEPPED BLOCK ACCESSORY

  • •2 x Stepped Block
  • •2 x CSK M6 x 12mm Countersunk Screws
Stepped Block Accessory

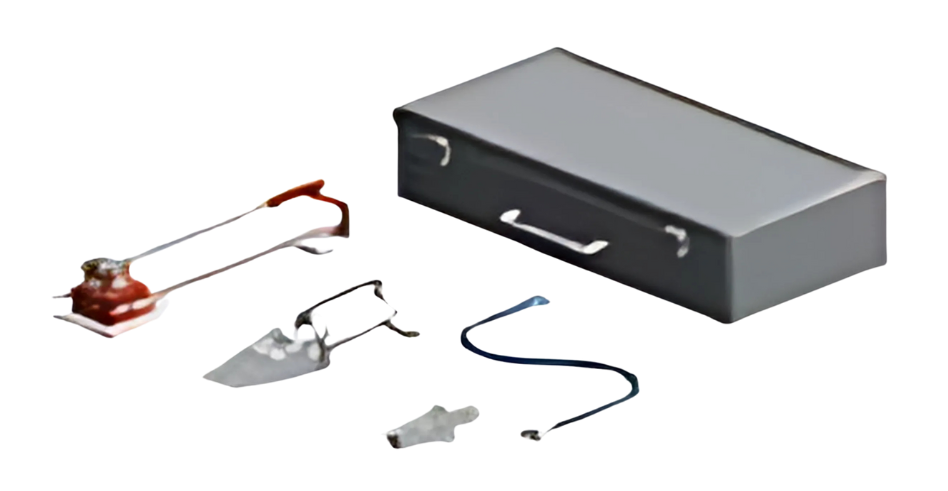

STANDARD KIT

  • •1 x Hydraulic Spreading Wedge Assembly
  • •1 x 10,000 psi (700 Bar) Two Stage Hydraulic Hand Pump
  • •1 x 10,000 psi (700 Bar) Hydraulic Hose
  • •1 x Safety Block, Instruction Manual & Carry Case
  • •Gross Weight: 17 kg
Standard Kit

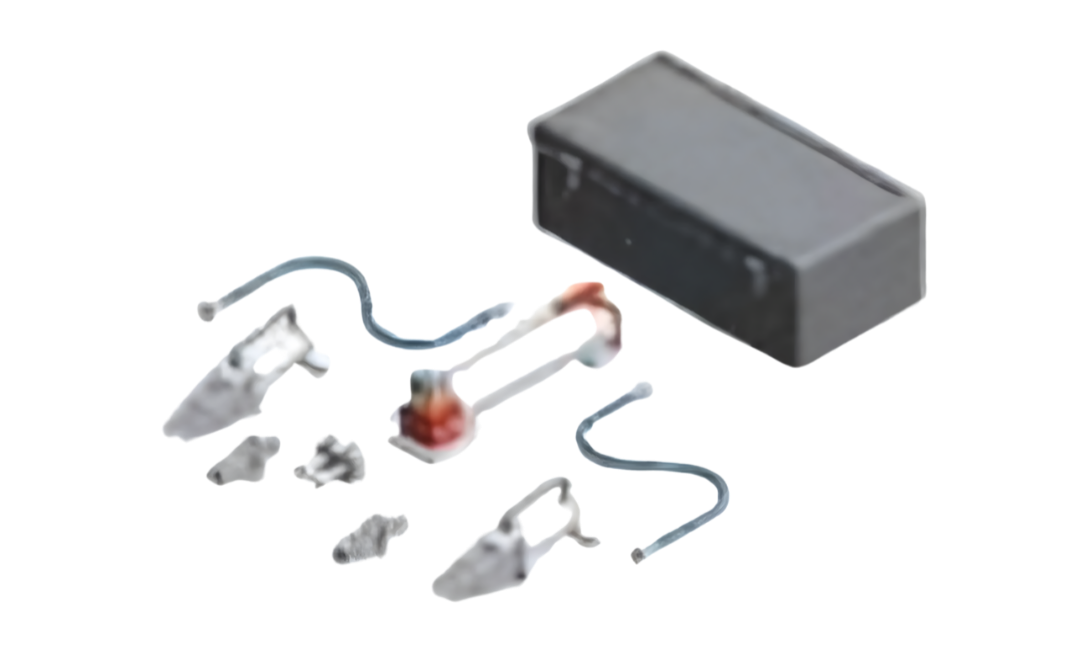

MAXI KIT

  • •2 x Hydraulic Spreading Wedge Assembly
  • •1 x 10,000 psi (700 Bar) Two Stage Hydraulic Hand Pump
  • •2 x 10,000 psi (700 Bar) Hydraulic Hoses
  • •2 x Safety Block & 1 x 10,000 psi Twin Valve Manifold
  • •1 x Instruction Manual & 1 x Carry Case
  • •Gross Weight: 28 kg
Maxi Kit
